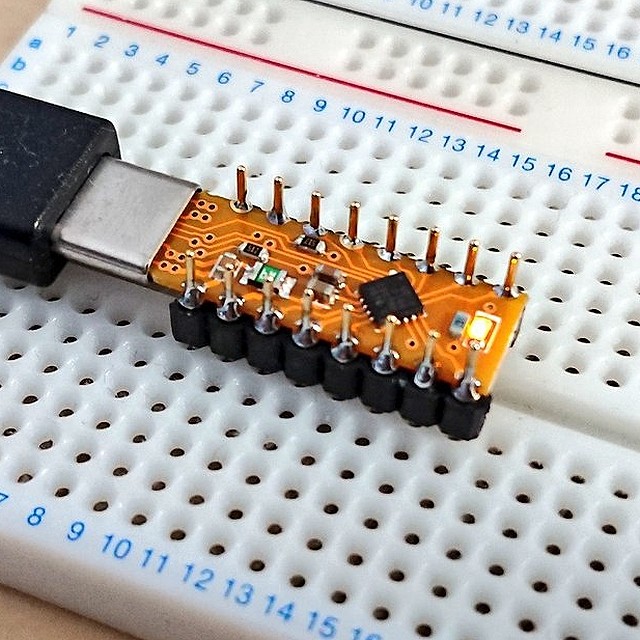

This breakout board converts Silicon Labs' EFM8UB1(Universal Bee series) to DIP scale.
You can use the USB Type-C cable directly connected.

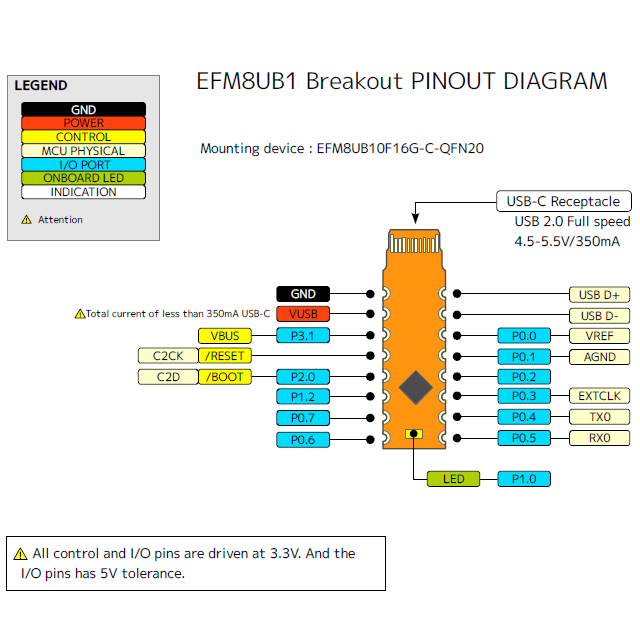

・300mil width DIP16 pin shape (substrate size 27.0 mm × 7.6 mm)
・EFM8UB10F16G-C (16kBytes flash, 2304Bytes RAM, Internal OSC)
・PCB-Edge Type-C connector
・USB-CDC bootloader
・USB bus-power supply
・One user LED
・Universal PCB mount available for single-sided parts mounting
Side-end face through terminal

*Documents
http://osafune.github.io/efm8ub1_breakout.html
